EBSA overview

Delagoa Shelf Edge, Canyons and Slope is in iSimangaliso Wetland Park, a Ramsar and World Heritage Site, with a recently extended MPA (South Africa), and the Ponta do Ouro Partial Marine Reserve (Mozambique). It includes numerous pristine ecosystems and a rich diversity of species, including coelacanths. It also supports key life-history stages of a plethora of threatened species, and encompasses fragile corals and sponges.

Click here for the full EBSA description

[Top]



The proposed zonation and recommended management in transboundary EBSAs is split at the national borders, with each country responsible for EBSA management in their own jurisdiction only. Engaging with Mozambique regarding Delagoa Shelf Edge, Canyons and Slope was beyond the scope of the MARISMA Project. Therefore, the whole status assessment and proposed management is given for only South Africa's portion of this EBSA.



Ecological Condition, Threat Status, Current Protection and Key Features in the EBSA

Delagoa Shelf Edge, Canyons and Slope is a transboundary EBSA, shared with Mozambique, that has a myriad of features and ecosystem types that need to be protected for the area to maintain the features and processes that give it its EBSA status. The criteria for which this EBSA ranks highly are: importance for life history stages, importance for threatened species and habitats, and naturalness. There are 17 ecosystem types represented in the South African portion of the EBSA, including ecosystem types like coral reefs and canyons that contain fragile, habitat-forming species. The EBSA is also critical for turtle nesting and foraging, and supports important life-history stages for numerous linefish, coelacanths, cetaceans and sharks, many of which species are also threatened.

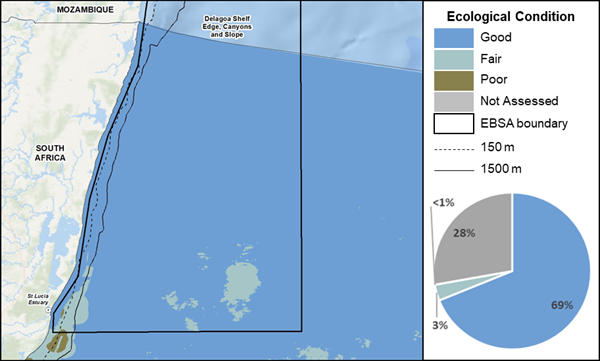

Delagoa Shelf Edge, Canyons and Slope proportion of area in each ecological condition category.



Delagoa Shelf Edge, Canyons and Slope is mostly in good ecological condition (69%), with a small portion that is fair (3%), and <1% in poor ecological condition (noting that 28% of the EBSA extent is in Mozambique and thus was not assessed here). Consequently, the bulk of the EBSA is Least Concern (71%), with 1% and <1% that is Vulnerable and Endangered respectively.

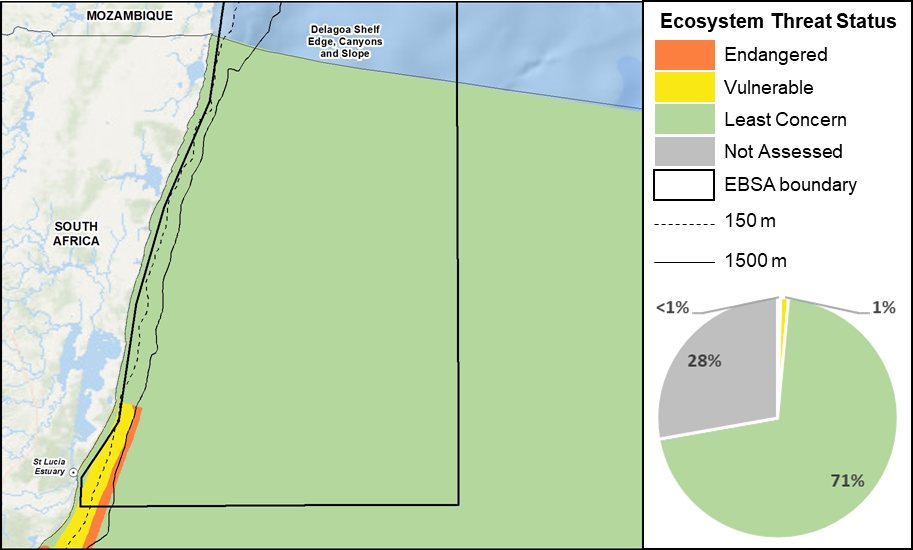

Delagoa Shelf Edge, Canyons and Slope proportion of area in each ecosystem threat status category.

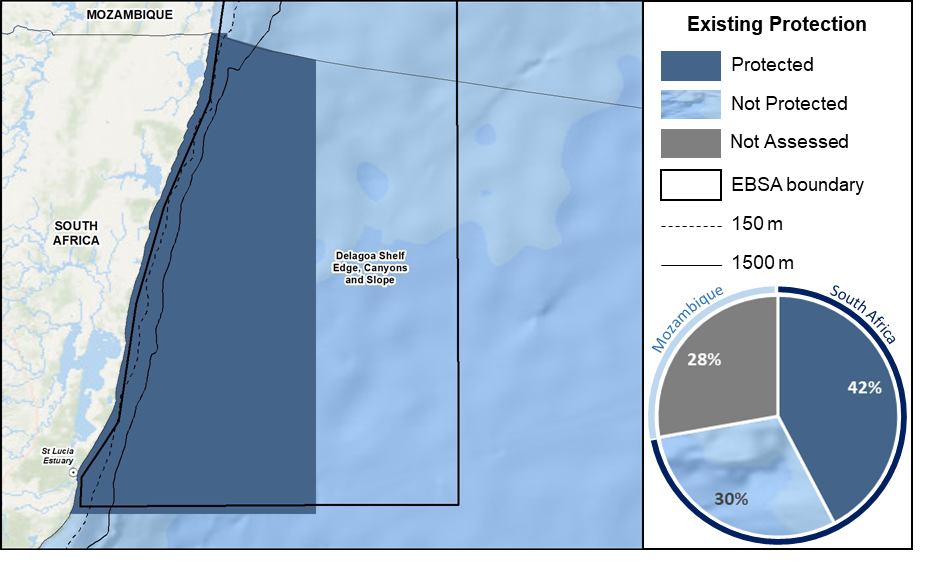

Delagoa Shelf Edge, Canyons and Slope proportion of area in a Marine Protected Area (MPA).



Protection of features in MPAs in South Africa has been considerably expanded and strengthened following the proclamation of the Operation Phakisa MPA network, with the EBSA area in South Africa within reserves increasing dramatically from 3% to 58% (42% of the full EBSA extent). The new protection is as a result of offshore expansion of the iSimangaliso MPA. Although most ecosystem types in the EBSA are Well Protected, and almost all the rest are Moderately Protected, there are two ecosystem types that are either Poorly Protected or Not Protected.



Threat status, protection level and ecological condition of ecosystem types in the EBSA. Other key features are also listed.

Feature

Threat Status

Protection Level

Condition (%)

Good

Fair

Poor

Ecosystem Types

Delagoa Deep Shelf Edge

LC

WP

100.0

0.0

0.0

Delagoa Lower Canyon

LC

WP

100.0

0.0

0.0

Delagoa Rocky Mid Shelf

LC

WP

100.0

0.0

0.0

Delagoa Sandy Inner Shelf

LC

WP

100.0

0.0

0.0

Delagoa Sandy Mid Shelf

LC

WP

100.0

0.0

0.0

Delagoa Shelf Edge

LC

WP

98.7

1.3

0.0

Delagoa Upper Canyon

LC

WP

100.0

0.0

0.0

KZN Bight Muddy Shelf Edge

VU

MP

35.2

63.6

1.2

KZN Bight Deep Shelf Edge

EN

MP

3.4

95.5

1.0

KZN Bight Outer Shelf Mosaic

VU

MP

0.0

68.5

31.5

Leadsman Coral Community

LC

WP

100.0

0.0

0.0

Southwest Indian Lower Slope

LC

NP

89.8

10.2

0.0

Southwest Indian Mid Slope

LC

PP

96.3

3.7

0.0

Southwest Indian Upper Slope

LC

WP

97.9

2.1

0.0

St Lucia Mid Shelf Mosaic

LC

WP

100.0

0.0

0.0

St Lucia Sandy Inner Shelf

LC

WP

100.0

0.0

0.0

St Lucia Sandy Mid Shelf

VU

MP

60.2

35.0

4.8

Other Features

  • Four species of turtles, two resident foraging species (juveniles) and two migratory nesting species (adults); all species are threatened
  • Coelacanths
  • Breeding, foraging and/or transiting areas for numerous species of sharks, dolphins and whales
  • Many important linefish species (e.g., sparids)
  • Fragile and/or habitat-forming species, e.g., reef-forming corals, sponges, starfish
  • Sites that support important life history stages of fish and crustaceans

[Top]



Relevant Pressures and Activities (impact, extent)

  • There are five pressures present in this EBSA, of which shipping is the only one that covers the entire EBSA extent and has the highest cumulative pressure profile.
  • Key pressures in this EBSA that most directly impact the features for which the EBSA is described include: pelagic longlining, recreational and commercial linefishing, prawn trawling and mean annual runoff reduction. These activities will need to be managed particularly well in order to protect the nursery habitats, fish assemblages and focal species, such as turtles (caught as bycatch), for which this EBSA is recognised. Ship strikes by passing vessels are also a risk to animals like turtles and whales. The commercial fishing pressures are in the Impact Management Zone, however, recreational linefishing is permitted in certain parts of iSimangaliso Wetland Park MPA.
  • Prawn trawling and mean annual runoff reduction both comprise <1.5% of the EBSA pressure profile, and are largely linked to the health and functioning of the adjacent St Lucia estuary.
  • Activities in South Africa that are not present in this EBSA include: abalone harvesting, alien invasive species, beach seining, benthic (hake) longlining, coastal development, coastal disturbance, dredge spoil dumping, gillnetting, kelp harvesting, mariculture, midwater trawling, mining (prospecting and mining), naval dumping (ammunition), oil and gas (exploration and production), oyster harvesting, tuna pole fishing, ports and harbours, recreational shore angling, shark netting, small pelagics fishing, south coast rock lobster harvesting, squid fishing, subsistence harvesting, inshore trawling, offshore trawling, wastewater discharge, and west coast rock lobster harvesting.



Map of cumulative pressure from all activities in the EBSA and surrounds. Darker reds indicate higher pressure intensity.



Pressure (in arbitrary cumulative pressure units, CPUs) summed for each pressure in the EBSA, per proposed EBSA biodiversity zone, ranked left (highest) to right (lowest) by the overall relative importance of pressures in this EBSA. Note that mean annual runoff reduction and prawn trawling each comprise <1.5% of the EBSA pressure profile.

[Top]



Management Interventions Needed for the EBSA

Improved place-based protection of EBSA features should be pursued. In support of this, the EBSA is divided into a Conservation Zone and an Impact Management Zone, both comprising several areas within the EBSA. The aim of the Conservation Zone is to secure core areas of key biodiversity features in natural / near-natural ecological condition. Strict place-based biodiversity conservation is thus directed at securing key biodiversity features in a natural or semi-natural state, or as near to this state as possible. Activities or uses that have significant biodiversity impacts should be prohibited. Where possible and appropriate these areas should be considered for formal protection e.g., Marine Protected Areas or other effective area-based conservation measures (OECM). The aim of the Impact Management Zone is to manage negative impacts on key biodiversity features where strict place-based measures are not practical or not essential. In this zone, the focus is management of impacts on key biodiversity features in a mixed-use area, with the objective to keep biodiversity features in at least a functional state. Activities or uses which have significant biodiversity impacts should be strictly controlled and/or regulated. Within this zone, there should be no increase in the intensity of use or the extent of the footprint of activities that have significant biodiversity impacts. Where possible, biodiversity impacts should be reduced.

As far as possible, the Biodiversity Conservation Zone was designed deliberately to avoid conflicts with existing activities. It also includes one MPA that is partially within the EBSA (a small portion in the south is included in the KwaZulu-Natal Bight and uThukela River EBSA): iSimangaliso MPA, the proclamation of which in 2019 replaces and significantly expands the previous Maputaland (proclaimed in 1986) and St Lucia (proclaimed in 1979) MPAs. The activities permitted within this MPAs are not considered as part of the EBSA management recommendations because these are as per the gazetted regulations.



Proposed zonation of the EBSA into Conservation (medium green) and Impact Management (light green) Zones. MPAs are overlaid in orange outlines, with the extent within the EBSA given in dark green. Click on each of the zones to view the proposed management recommendations.



Protection of features in the rest of the Conservation Zone may require additional Marine Protected Area declaration/expansion. Other effective conservation measures should also be applied via Marine Spatial Planning (MSP) to ensure that the existing activities/uses are appropriately controlled to ensure compatibility of activities with the environmental requirements for achieving the management objectives of the EBSA Biodiversity Conservation and Environmental Impact Management Zones.

Based on the compatibility of sea-use activities with the management objective of each EBSA zone (see table below, from the sea-use guidelines of the National Coastal and Marine Spatial Biodiversity Plan), it is recommended for MSP that compatible activities are managed as General activities, which are those that are permitted and regulated by current general rules and legislation. Activities that are conditional are recommended to be managed as Consent activities, which are those that can continue in the zone subject to specific regulations and controls, e.g., to avoid unacceptable impacts on biodiversity features, or to avoid intensification or expansion of impact footprints of uses that are already occurring and where there are no realistic prospects of excluding these activities. Activities that are not compatible are recommended to be Prohibited, where such activities are not allowed or should not be allowed (which may be through industry-specific regulations) because they are incompatible with maintaining the biodiversity objectives of the zone. These recommendations are subject to stakeholder negotiation through the MSP process, recognizing that there will likely need to be significant compromises among sectors. It is emphasized, as noted above, that if activities that are not compatible with the respective EBSA zones are permitted, it would require alternative Biodiversity Conservation Zones or offsets to be identified. If this is not possible, it is recommended that the activity is Prohibited.

List of all sea-use activities, grouped by their Marine Spatial Planning (MSP) zones, and scored according to their compatibility with the management objective of the EBSA’s Biodiversity Conservation Zone (i.e., Critical Biodiversity Area, CBA) and Environmental Impact Management Zone (i.e., Ecological Support Area, ESA). Activity compatibility is given as Y = yes, compatible, C = conditional or N = not compatible, with major activities that are present in the EBSA shaded in grey.

There are also some pressures on biodiversity features within the EBSA that originate from activities outside of these EBSA or beyond the jurisdiction of MSP. In support of maintaining the ecological integrity of and benefits delivered by the key biodiversity features, these other activities need to be appropriately managed by complementary initiatives.

Note also that the boundary of this EBSA was not revised given that it would have involved international engagement with Mozambique, which was beyond the scope of the current project. However, it ideally should be extended to match the extent of the iSimangaliso MPA and thus include the adjacent inshore and shore ecosystem types. Consequently, many of the shore-based activities (e.g., coastal development, coastal disturbance, recreational fishing, subsistence harvesting) that are not present and not relevant to the current EBSA boundary, are still important to regulate in support of the EBSA. Given that these activities fall within the iSimangaliso Wetland Park World Heritage Site and MPA, they should be adequately managed through the Park regulations.



Recommendations for other activities beyond the jurisdiction of MSP management to support securing key biodiversity features within the EBSA.


[Top]



Activity Evaluation Per Zone: Zoning Feasibility

Proposed zonation of the EBSA, with the cumulative intensity footprint of activities within the EBSA (sorted highest to lowest) given relative to the national footprint of those activities to illustrate feasibility of management interventions.



All activities that occur within this EBSA comprise a small fraction of the national footprint. These activities would be permitted to continue, subject to appropriate regulations and management. It is also recognised that most of the activities are within the iSimangaliso MPA, where they are managed according to the MPA regulations. Specifically, linefishing (commercial and recreational) and prawn trawling occur only within the MPA and are recommended to be Prohibited in the EBSA Conservation and Impact Management Zones because these activities are currently not present in those zones. Pelagic longlining and shipping are the only activities that occur within the EBSA zones as well as the MPA. Pelagic longlining is recommended as a Consent activity in both EBSA zones, noting that this is one of the most important pressures to Critically Endangered leatherback turtles that come to nest on the beaches in iSimangaliso Wetland Park immediately adjacent to the EBSA during the summer. Shipping is recommended to continue in both the Conservation and Impact Management Zones under current general rules and legislation. Thus, in all cases, the EBSA zonation has no or minimal impact on the national footprint for the listed marine activities.

There are also several activities that are largely outside the EBSA but have downstream impacts to the biodiversity within the EBSA, e.g., from mean annual runoff reduction, coastal disturbance, and wastewater discharge. These impacts should be managed, but principally fall outside the direct management and zoning of the EBSA. These activities ideally should be and largely already are dealt with in the management plan of the adjacent iSimangaliso Wetland Park.



Management recommendations for MPAs

Since the inception of the MARIMSA Project, protection has increased in the EBSA with the declaration of the iSimangaliso MPA in 2019, which is an expansion and replacement of the previous St Lucia and Maputaland MPAs. This also builds on the adjacent land-based protected areas as part of iSimangaliso World Heritage Site and beyond. It is recommended that existing management is strengthened, and that full operationalisation of the expanded MPA is implemented, including revisions to the management plan, resourcing, and adequate staffing and law enforcement. Potential MPA expansion within the EBSA should be explored to ensure that the features for which the EBSA was described receive adequate protection. See Future Process below for more details.

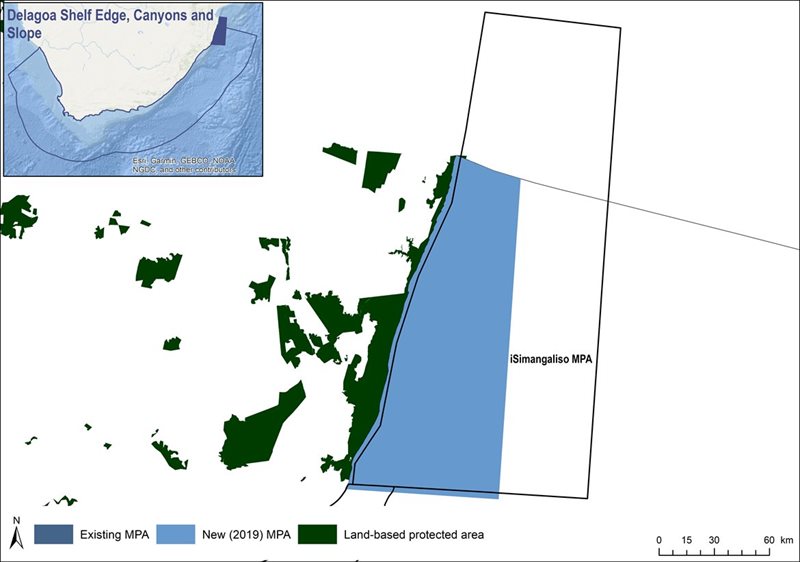

Marine protected areas (MPAs) in the Delagoa Shelf Edge, Canyons and Slope EBSA. Land-based protected areas are also shown (from DFFE, 2021).

[Top]

Management recommendations for MSP

Developing the biodiversity sector’s input to the national Marine Spatial Planning process

Following the initial management recommendations proposed for Delagoa Shelf Edge, Canyons and Slope, outlined above, South Africa iteratively developed a National Coastal and Marine Spatial Biodiversity Plan (NCMSBP; Harris et al. 2022a,b) that underpinned the Marine Biodiversity Sector Plan (DFFE 2022). The latter constitutes the biodiversity sector’s input into the national Marine Spatial Planning (MSP) process. The NCMSBP comprises a Map of Critical Biodiversity Areas and Ecological Support Areas (abbreviated to CBA Map), and a set of sea-use guidelines that indicate activity compatibility with the management objectives of each of the CBA Map categories. These two components form the basis for the proposed biodiversity zones and management recommendations for the Marine Area Plans. EBSAs are an integral part of the NCMSBP, and thus the Biodiversity Sector Plan. Therefore, these products informed the proposed zoning and sea-use guidelines for EBSAs in the MSP process.



Schematic diagram illustrating that the National Coastal and Marine Spatial Biodiversity Plan will inform the Marine Area Plans through the Marine Biodiversity Sector Plan (DFFE 2022), and will be iteratively updated and refined based on feedback. The process for deriving the sea-use guidelines is also shown, indicating that it is based on an assessment of activity compatibility with the management objective of Critical Biodiversity Area (CBA) Natural, CBA Restore and Ecological Support Areas (ESAs). Marine Protected Area (MPA) expansion, focussing on CBAs, will also take place in a separate but related process. The outcomes of the Marine Spatial Planning and MPA expansion processes will be incorporated into the Marine Area Plans and will be fed back into future updates of the National Coastal and Marine Spatial Biodiversity Plan.

[Top]

Proposed Zones

The proposed biodiversity zones for the EBSA in MSP comprises two types: a Strict Biodiversity Conservation Zone; and a Biodiversity Impact Management Zone. The former has three sub-categories: Marine Protected Area; Biodiversity Conservation Area; and Biodiversity Restoration Area. All of these zones and sub-categories are found in Delagoa Shelf Edge, Canyons and Slope, except the Strict Biodiverty Conservation Zone: Biodiversity Restoration Area.



The Strict Biodiversity Conservation Zone is primarily a Biodiversity Conservation Area, where the management objective of this zone is to maintain the sites in natural or near-natural ecological condition. The rest of the Strict Biodiversity Conservation Zone comprises a Biodiversity Restoration Area, where the management objective of the zone is to improve the ecological condition of the sites and, in the long term, restore them to a natural / near-natural state, or as near to that state as possible. As a minimum, avoid further deterioration in ecological condition and maintain options for future restoration. The rest of the EBSA is a Biodiversity Impact Management Zone. This is a multi-use area that may already be heavily impacted, but needs to be kept ecologically functional because it is still important for marine biodiversity patterns, ecological processes, and ecosystem services. Therefore, the management objective is to avoid further deterioration in ecological condition.



Proposed biodiversity zones for the Delagoa Shelf Edge, Canyons and Slope EBSA for South Africa’s Marine Area Plans.



Proposed Sea-Use Guidelines

All sea-use activities were listed and evaluated according to their compatibility with the management objective of each of the proposed biodiversity zones. Where various aspects of an activity have a different impact on the environment, these were reflected separately, e.g., impacts from petroleum exploration are different to those from production. Activity compatibility was based largely on the ecosystem-pressure matrix from the NBA 2018 (Sink et al. 2019), which is a matrix of expert-based scores of the functional impact and recovery time for each activity on marine ecosystems (adapted from Halpern et al. 2007). Activities were then classified into those that are Compatible, Not Compatible or have Restricted Compatibility with the management objectives of each proposed biodiversity zone. This classification followed a set of predefined principles that account for the severity and extent of impact, similar to the IUCN Red List of Ecosystems criterion C3 (Keith et al. 2013). Some exceptions and adjustments were made based on initial discussions as part of the MSP process.



Sea-use guidelines for Delagoa Shelf Edge, Canyons and Slope. List of all sea-use activities, grouped by their broad sea use and Marine Spatial Planning (MSP) Zones, and categorised according to their compatibility with the management objective of Strict Biodiversity Conservation Zone: Biodiversity Conservation Area (SBCZ: BCA); Strict Biodiversity Conservation Zone: Biodiversity Restoration Area (SBCZ: BRA); and the Biodiversity Impact Management Zone (BIMZ). Activity compatibility is given as Y = yes, compatible, R = restricted compatibility, or N = not compatible. Strict Biodiversity Conservation Zone: Marine Protected Areas (SBCZ: MPA) are managed according to their gazetted regulations.



Proposed management recommendations for activities with each of the different compatibility ratings:

  • Compatible: Activities should be allowed and regulated by current general rules. Notwithstanding, there should still be duty of care, possibly requiring monitoring and evaluation programmes, to avoid unintended cumulative impacts to the biodiversity features for which this area is recognised.
  • Restricted compatibility: A robust site-specific, context-specific assessment is required to determine the activity compatibility depending on the biodiversity features for which the site was selected. Particularly careful attention would need to be paid in areas containing irreplaceable to near-irreplaceable features where the activity may be more appropriately evaluated as not permitted. The ecosystem types in which the activities take place may also be a consideration as to whether or not the activity should be permitted, for example. Where it is permitted to take place, strict regulations and controls over and above the current general rules and legislation would be required to be put in place to avoid unacceptable impacts on biodiversity features. Examples of such regulations and controls include: exclusions of activities in portions of the zone; avoiding intensification or expansion of current impact footprints; additional gear restrictions; and temporal closures of activities during sensitive periods for biodiversity features.
  • Not compatible: The activity should not be permitted to occur in this area because it is not compatible with the management objective. If it is considered to be permitted as part of compromises in MSP negotiations, it would require alternative Strict Biodiversity Conservation Zones and/or offsets to be identified. However, if this is not possible, it is recommended that the activity remains prohibited within the Strict Biodiversity Conservation Zone.

[Top]



Research Needs

There are no specific research needs for this EBSA in addition to those for all EBSAs



Future Process

It is recommended that there is engagement with Mozambique to review this EBSA to match the update for the rest of South Africa’s EBSAs. The revision would need to include addressing the inconsistency in the western boundary stated in the description (high water mark) and the mapped boundary in the EBSA delineation (2-3 km from the shore on the inner shelf), likely resulting from the scale at which the EBSA boundary was drawn. Notably, refining the delineation to match what is recorded in the description would ensure that key biodiversity features are captured in the EBSA extent, such as critical breeding habitat for threatened species (loggerhead and leatherback nesting beaches) and reefs containing fragile species and serving as foraging areas for numerous species including juvenile turtles. Note also that these beaches comprise the full extent of the only nesting beaches for the Western Indian Ocean populations (discrete Regional Management Unit) of loggerheads and leatherbacks.

There also needs to be full operationalisation and practical implementation of the proposed zoning in South Africa’s national marine spatial plan, with gazetted management regulations following the proposed management recommendations outlined above. Possible offshore MPA expansion within the EBSA should be explored, with relevant areas included into focus areas that can be considered further in a dedicated MPA expansion process with adequate and meaningful stakeholder engagement. There is already excellent alignment between land-based and marine biodiversity priorities through the iSimangaliso World Heritage Site. It should be explored to see if there are any ways in which this could be strengthened further, e.g., through the cross-realm planning in the CoastWise project.



References

DFFE, 2021. South African Protected Areas Database (SAPAD). Available at: https://egis.environment.gov.za/protected_and_conservation_areas_database.

DFFE, 2022. Biodiversity Sector Plan: Input for Marine Spatial Planning (MSP). Department of Forestry, Fisheries and the Environment, Cape Town.

Halpern, B.S., Selkoe, K.A., Micheli, F., Kappel, C.V., 2007. Evaluating and Ranking the Vulnerability of Global Marine Ecosystems to Anthropogenic Threats. Conservation Biology 21, 1301–1315.

Harris, L.R., Holness, S.D., Kirkman, S.P., Sink, K.J., Majiedt, P., Driver, A., 2022. National Coastal and Marine Spatial Biodiversity Plan Version 1.2 (Released: 12-04-2022). Nelson Mandela University, Department of Forestry, Fisheries and the Environment, and South African National Biodiversity Institute, South Africa.

Harris, L.R., Holness, S.D., Kirkman, S.P., Sink, K.J., Majiedt, P., Driver, A., in review. A robust, systematic approach for developing the biodiversity sector’s input for multi-sector Marine Spatial Planning. Ocean & Coastal Management.

Keith, D.A., Rodríguez, J.P., Rodríguez-Clark, K.M., Nicholson, E., Aapala, K., Alonso, A., Asmussen, M., Bachman, S., Basset, A., Barrow, E.G., Benson, J.S., Bishop, M.J., Bonifacio, R., Brooks, T.M., Burgman, M.A., Comer, P., Comín, F.A., Essl, F., Faber-Langendoen, D., Fairweather, P.G., Holdaway, R.J., Jennings, M., Kingsford, R.T., Lester, R.E., Nally, R.M., McCarthy, M.A., Moat, J., Oliveira-Miranda, M.A., Pisanu, P., Poulin, B., Regan, T.J., Riecken, U., Spalding, M.D., Zambrano-Martínez, S., 2013. Scientific Foundations for an IUCN Red List of Ecosystems. PLoS ONE 8, e62111.

Sink, K.J., Holness, S., Skowno, A.L., Franken, M., Majiedt, P.A., Atkinson, L.J., Bernard, A., Dunga, L.V., Harris, L.R., Kirkman, S.P., Oosthuizen, A., Porter, S., Smit, K., Shannon, L., 2019. Chapter 7: Ecosystem Threat Status, In South African National Biodiversity Assessment 2018 Technical Report Volume 4: Marine Realm. eds K.J. Sink, M.G. van der Bank, P.A. Majiedt, L.R. Harris, L.J. Atkinson, S.P. Kirkman, N. Karenyi. South African National Biodiversity Institute, Pretoria. http://hdl.handle.net/20.500.12143/6372.
